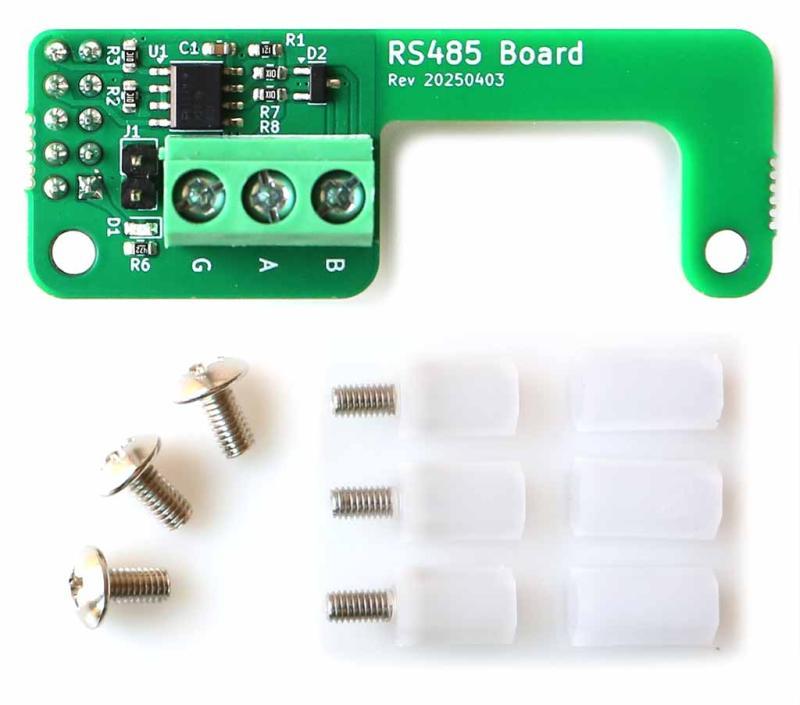

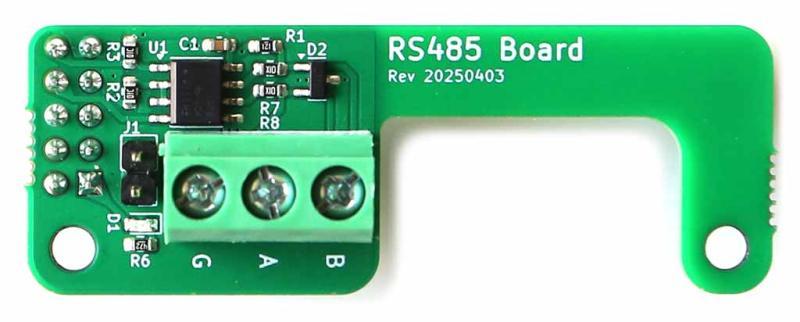

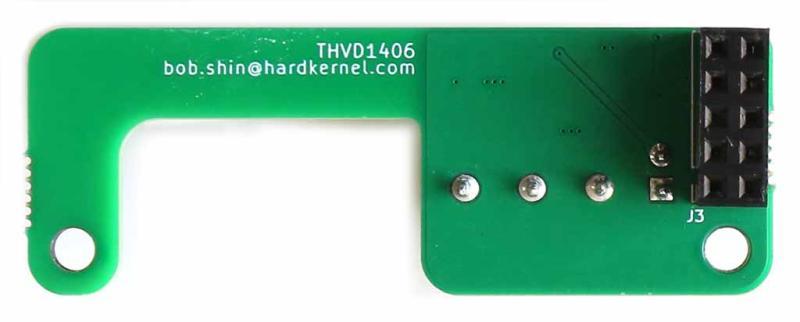

HARDKERNEL RS-485 Add on Board for C5

Cikkszám: HKL-RS-485-C5

Raktárkészlet: 2 db

4 816Ft
(3 792Ft+ ÁFA)
db
Termékadatok
Gyártó
HARDKERNEL

This board is designed to provide RS-485 control to ODROID single board computers, it is easily attachable to GPIO headers and accessible through UART bus.

  • Texas Instruments THVD1406
  • Half-duplex RS-485
  • Auto-direction control using the data input pin (No control pin required)
  • Maximum Data rates: 500 kbps
  • Built-in termination resistor (Use by shorting the j1 connector)





Form Factor Board dimension : 56 (L) x 20 (W) x 21 (H) mm
I/O 1x RS-485 bus




Wiki:https://wiki.odroid.com/accessory/add-on_boards/485board

GTIN:8809543644113
