Garancia: 5 év.
| Hardver jellemzők | |
|---|---|
| Csatlakozások | • 5× 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3af PoE and 802.3at PoE+) • Auto-Negotiation/Auto MDI/MDIX |
| Ventilátorok száma | Fanless |

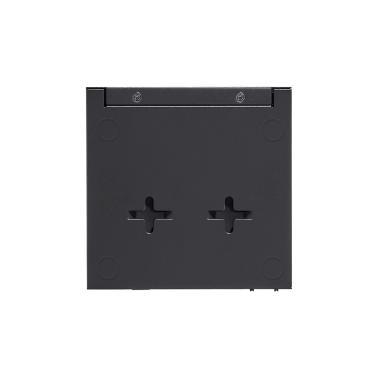

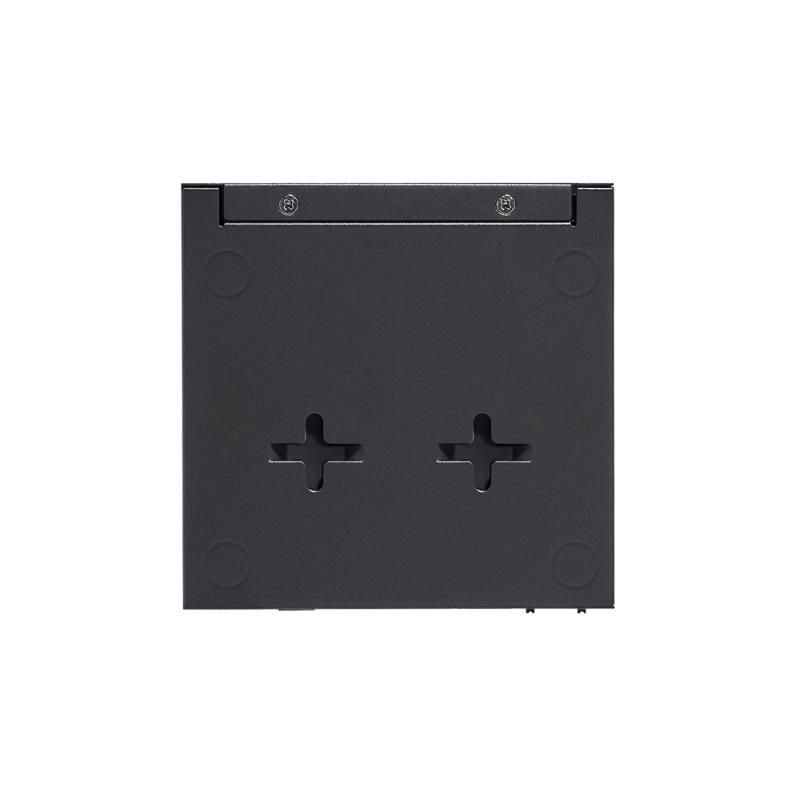

| Beüzemelés | • Desktop • Wall Mount |
| Fizikai biztonsági zár | √ |

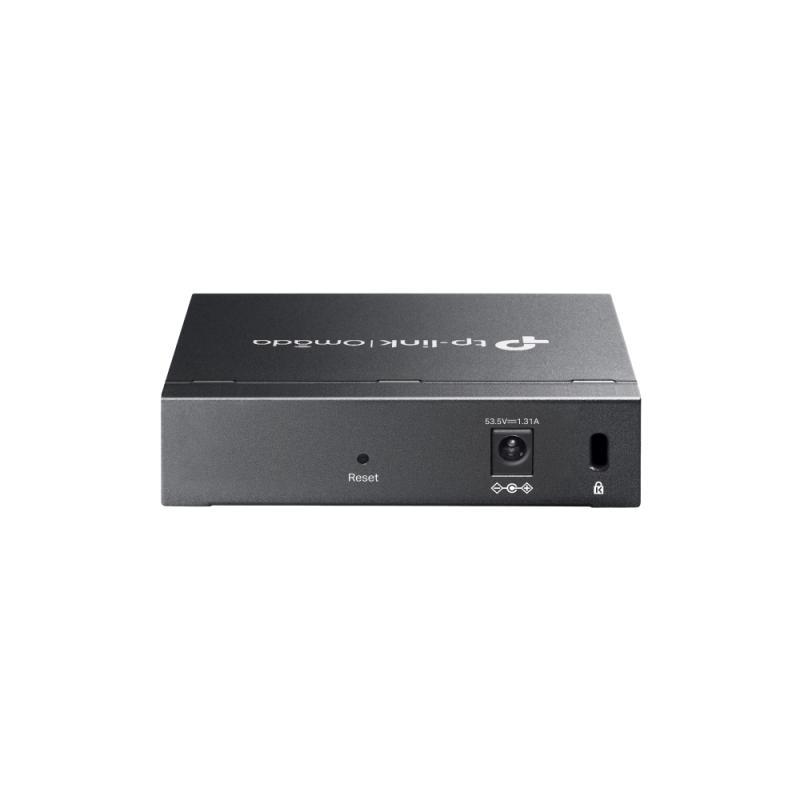

| Hálózati tápegység | DC Power Adapter (Output: 53.5V DC / 1.31A) |
| PoE portok (RJ45) | • Standard: 802.3af PoE and 802.3at PoE+ compliant • PoE Ports: 4 ports • PoE Budget: 65 W available for all PoE+ ports, 30W max per port • PoE Auto Recovery‡ • Up to 250m PoE transmission distance** |
| Méretek (Sz x Mé x Ma) | 3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm) |
| Surge Protection | ±6kV |
| Működési jellemzők | |
|---|---|
| Switching teljesítmény | 10 Gbps |
| Csomagtovábbítási sebesség | 7.4 Mpps |
| Fizikai (MAC) cím tábla | 8K |
| Csomag puffer memória | 4 Mbit |
| Jumbo Frame | 15 KB |
| Szoftver jellemzők | |
|---|---|
| QoS (szolgáltatás minősége) | • Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control△ |
| L2 jellemzők | • Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP |
| L2 Multicast | • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave |
| VLAN | • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID |
| Továbbítás módja | Store-And-Forward |
| Vezérlés | |
|---|---|
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration† |
| Egyéb jellemzők | |
|---|---|
| Tanúsítványok | FCC, CE, RoHS |
| Csomagolás tartalma | • ES205GP • Power Adapter • Power Cord • Rubber Feet • Installation Guide |
| Környezet | • Operating Temperature: 0℃~40℃ (32℉~104℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
